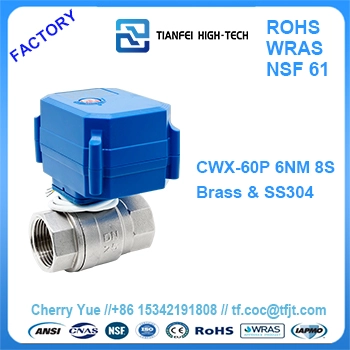

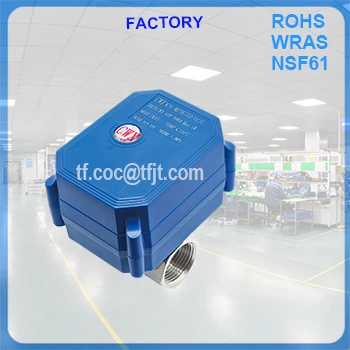

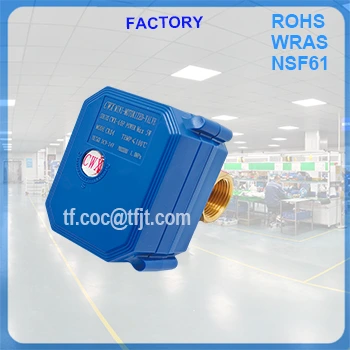

Introduce for motorised ball valve 12v
Product Features
1.Beautiful appearance, tamanho pequeno, multi angle assembly, easy to install and use
2.All metal gear transmission mechanism, large output torque, up to 6NM, longa vida útil, reliable performance
3.Electrical limit, accurate position, high consistency
4.Float ball structure, no leakage, large flow for 2-way valve.
5.Protection class up to IP65, good substritution for solenoid valve or the environment which solenoid valve can not work, can be used in a relatively humid environment
| Modelo | Cwx-60P motorised ball valve 12v |
| Torque | 6Nm |
| Aberto/feche Tfazer | 8s |
| Válvula Size | DN8, DN10, DN15, DN20, DN25
1/4“3/8” 1/2 ”3/4” 1 ”
3caminho: DN15 1/2 ”T-TYPE DN20 3/4 ”T-TYPE |
| Material da válvula | Latão
SS304 |
| Selo | Sílica gel /ptfe |
| Padrão de thread | BSP (Padrão da Europa)
NPT (America Standard) |
| Tensão | DC3.6-6V, DC12V ,AC/DC9-24V, AC220V, AC85-265V |
| Diagrama de fiação | CR01 CR02 CR03 CR04 CR05 |
| Atualização de trabalho | Max100Ma (CR04 MAX150MA) |
| Temperatura média | Máx 90 grau Celsius |
| Pressão de trabalho | Max1.0mpa |
| Classe de proteção | IP65 motorised ball valve 12v |
| Certificação | CE,ISO9001, ROHS,Sujo, NSF61 |

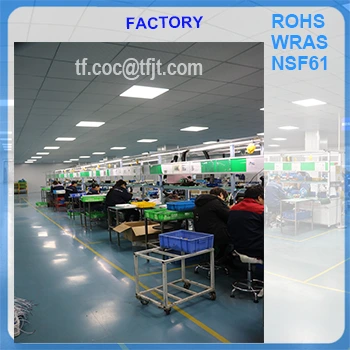

The company has a professional R & D team, obtained a number of product patent certificates, and won the recognition of Tianjin government departments for many times,
The independent research and development, production of industrial grade electric valve, pneumatic valve, micro electric valve, HVAC valve and other four categories, more than ten series, covering hundreds of products.
