Introduce for motorized two way valve
CTF-002
Product Features
- Actuator housing with nylon material, light and compact, adopts the machined gear drive mechanism, large output torque, stable operation, small noise
- Electric and manual override design, with a transparent window, can know the valve open/close situation at a glance motorized two way valve
- Double sealing structure, IP65 protection class, can with thread, union, flange end connection, can quick assembly without any special tools, valve body corrosion resistance, wide application
- Has the advantages of compact structure, wear resistance, easy disassembly, easy maintenance, easy maintenance, light weight and so on
- Can use active and passive signal output

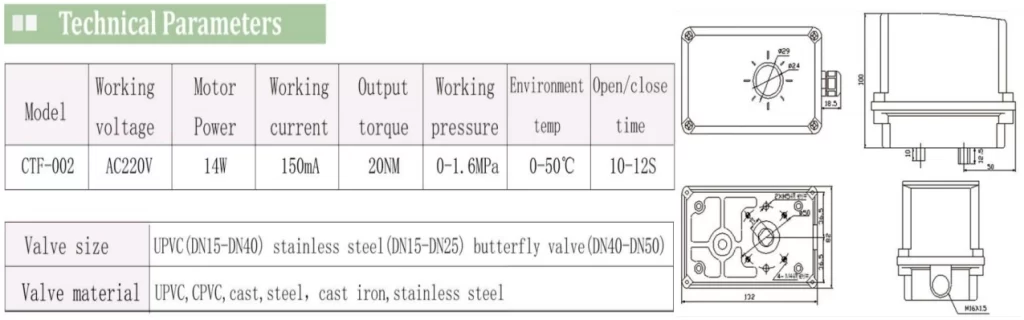

Technical Parameters
| Model | Working
voltage |
Motor
Power |
Working
current |
Output
torque |
Working
pressure |
Environment
temp |
Open/close
time |
| CTF-002 | AC220V | 14W | 150mA | 20NM | 0-1.6MPa | 0-50℃ | 10-12S |
| Valve size | UPVC(DN15-DN40) stainless steel(DN15-DN25) butterfly valve(DN40-DN50) | ||||||
| Valve material | UPVC.CPVC,cast steel, cast iron, stainless steel | ||||||
Application
Pure water and raw water pipeline systems, drainage and sewage, salt water and sea water pipeline systems, acid-base and chemical solution systems, UPVC compatible food industry chemical solvents and other industries motorized two way valve
