motorized 2 way ball valve Factory CWX-25S with manual operation 5V 12V 24V 110v 220v Brass SS304 DN8 DN15 DN20
CWX-25S
Product Features
1.POM and metal gear, stable and reliable performance
2.Manual override function can use when power shut off
3.Compact appearance, with position indicator to show open/close of the valve
4.Straightway ball valve with large flow, both inlet and outlet, protection class IP65 motorized 2 way ball valve
Technical Parameters
| Model | Working current | Pressure | Output torque | Power | Open/close time |
| CNX-25S | <80mA | Max1.0MPa | 2.5Nm | <2W | <5s |
| Rated Voltage | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V | ||||
| Control Mode | CR01 CR02 CR03 CR04 CR05 | ||||
| Size | DN8-DN32(2-way), DN8-DN20(3-way) | ||||
| Medium temp | 0-90℃ | ||||
| Protection class | IP65 | ||||
| Special Function | Manual function,position indicator motorized 2 way ball valve | ||||
Manual operation and notes
1.Be sure the valve is power off supply before manual function.
2.Pulling up the hand wheel, turn the hand wheel arriving slightly(pay attention to the position indicator to avoid valve damage)
3.The electric function can only be normal worked after pressing down the hand wheel when no need of manual function. motorized 2 way ball valve

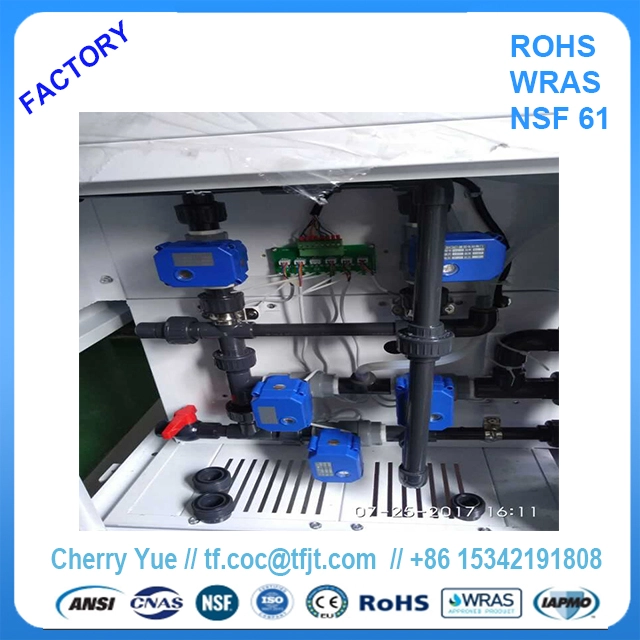

Application
1.IC card water meter, heat energy meter
2.HVAC and fire works motorized 2 way ball valve
3.Water saving of high-school, auto-control system, industrial mini-auto equipment
4.Water saving instrument, drinking water equipment, water heater, solar water heaters, washing machine, industrial humidifier
