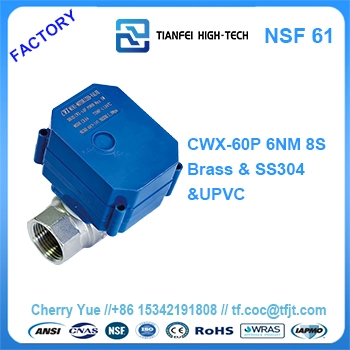

Introduce for hot water electric valve
CWX-60P
Product Features
1.Beautiful appearance, small size, multi angle assembly, easy to install and use
2.All metal gear transmission mechanism, large output torque, up to 6NM, long service life, reliable performance
3.Electrical limit, accurate position, high consistency hot water electric valve
4.Float ball structure, no leakage, large flow for 2-way valve.
5.Protection class up to IP65, good substritution for solenoid valve or the environment which solenoid valve can not work, can be used in a relatively humid environment
Technical Parameters
| Model | Working pressure | Output torque | Open/close time | Medium temp | Motor Power | Protection class |
| CWX-60P | Max1.0Mpa | Max6NM | <8S | 0℃-90℃ | <5W | IP65 |
| Voltage | DC3-6v DC12v AC/DC9-24vAC220v AC85-265v | |||||
| Working current | Max100mA(CR04 except Max150mA) | |||||
| Control mode/wiring | CR01,CR02,CR02+,CR03,CR04,CR05 CR06
with feedback signal CR01S CR02S CR03S CR04S |
|||||
| Size | DN8-DN32(2-way) DN15-DN25(3-way) | |||||
| Special function | CR01,CR02,CR03,CR04 can with feedback signal | |||||
Application
1.IC card water meter, heat energy meter
2.HVAC and fire works hot water electric valve
3.Water saving of high-school, auto-control system, industrial mini-auto equipment
4.Environment protection, water supply and drainage, water treatment
5.Replace solenoid valve which can not work hot water electric valve
6.Water saving instrument, drinking water equipment
7.CR02/AC24v for water heating industry
