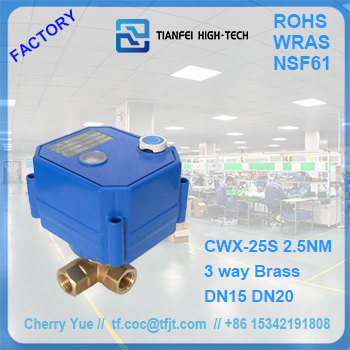

Introduce for 3 way electric water valve
| Model | CWX-25S with manual operation & position indicator 3 way electric water valve |
| Torque | 2.5NM |
| Open/close Time | 5s |
| Valve Size | DN8,DN10, DN15, DN20,DN25
1/4” 3/8” 1/2” 3/4” 1”
3way: DN15 1/2” T-type DN20 3/4” T-type |
| Valve Material | Brass
SS304 |
| Seal | Silica Gel /PTFE |
| Thread Standard | BSP (Europe Standard)
NPT (America Standard) |
| Voltage | DC3.6-6V, DC12V ,AC/DC9-24V, AC220V, AC85-265V |
| Wiring Diagram | CR01 CR02 CR03 CR04 CR05 |
| Working Current | Max100mA (CR04 Max150mA) |
| Medium Temperature | Max 90 degree celsius |
| Working pressure | Max1.0mpa |
| Protection Class | IP65 3 way electric water valve |
| CERTIFICATION | CE,ISO9001,ROHS,WRAS, NSF61 |
