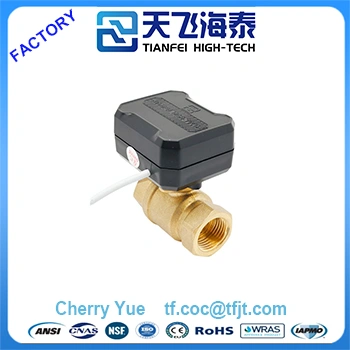

Introduce for CWX-20P 2 way motorized valve
CWX-20P
Product Features
1.Small volume, compact structure, small size, various voltage and assembly diverse ways.
2.Reduction mechanism of full powder metallurgy gear,durable, high output torque, suitable for much scaling pipe system.2 way motorized valve
3.Patented technology anti – scale valve body design, can delay the scaling time, is the first choice for external exhaust valve supporting products,
4.The exhaust valve shell by ultrasonic welding technology , good sealing performance, protection class IP65.2 way motorized valve

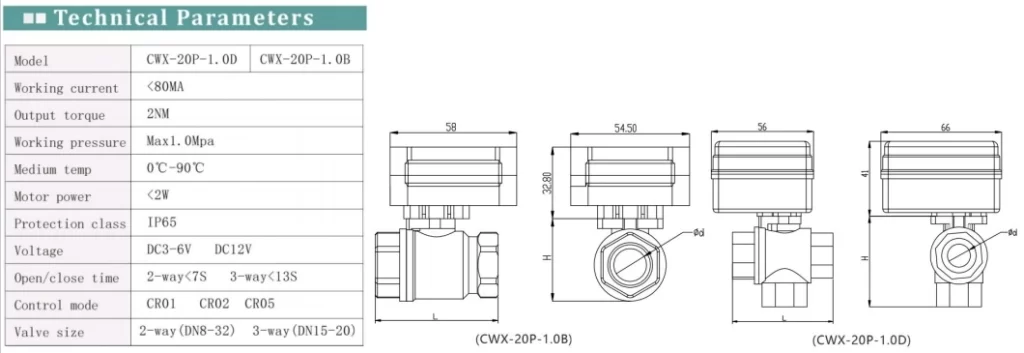

Technical Parameters
| Model | CWX-20P-1.0D | CWX-20P-1.0B |
| Working current | <80MA | |
| Output torque | 2NM | |
| Working pressure | Max1.0Mpa | |
| Medium temp | 0℃-90℃ | |
| Motor power | <2W | |
| Protection class | IP65 | |
| Voltage | DC3-6V DC12V | |
| Open/close time | 2-way<7S 3-way<13S | |

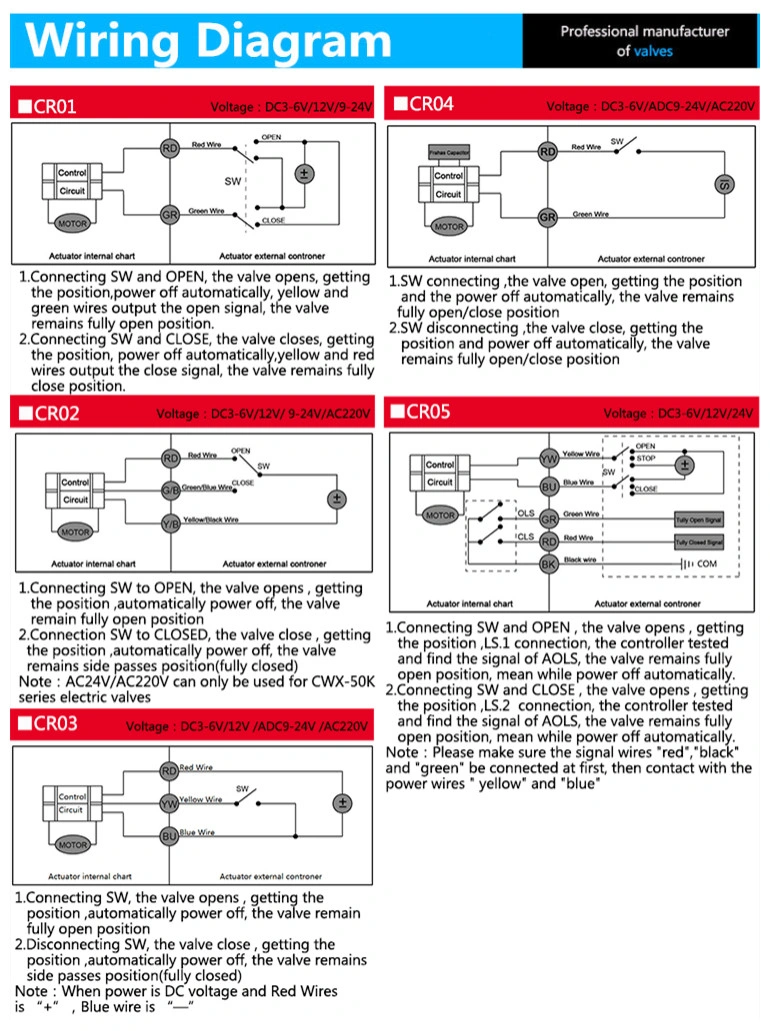

| Control mode | CR01 CR02 CR05 | |
| Valve size | 2-way(DN8-32) 3-way(DN15-20) | |
