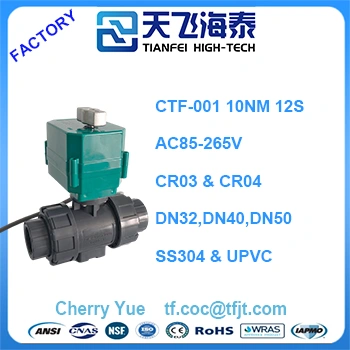

Introduce for 2 inch motorized ball valve
| Model | CTF-001 2 inch motorized ball valve |
| Torque | 10NM |
| Open/close Time | 12s |
| Valve Size | DN15, DN20,DN25,DN32,DN40,DN50
1/2” 3/4” 1” 1.25” 1.5” 2”
3way: DN15 1/2” DN20 3/4” DN25 1” |
| Valve Material | SS304
UPVC |
| Seal | Silica Gel /PTFE |
| Thread Standard | BSP (Europe Standard)
NPT (America Standard) |
| Voltage | DC3.6-6V, DC12V ,AC/DC9-24V, AC220V, AC85-265V |
| Wiring Diagram | CR01 CR02 CR03 CR04 CR05 |
| Working Current | Max500mA 2 inch motorized ball valve |
| Medium Temperature | Max 90 degree celsius |
| Working pressure | Max1.6mpa |
| Protection Class | IP65 |
| CERTIFICATION | CE,ISO9001,ROHS,WRAS, NSF61 |
