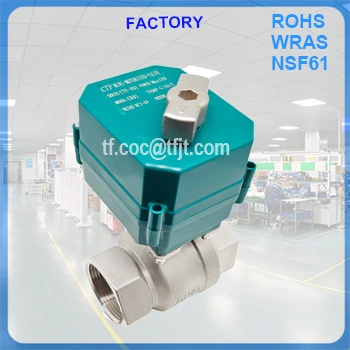

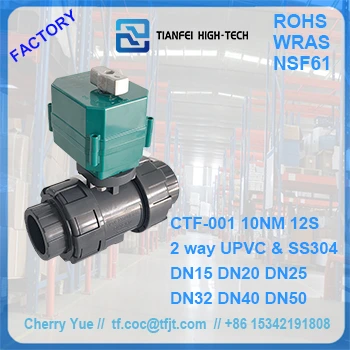

Introduce for 24vdc ball valve
製品の特徴
- Simple shape, small size, all-metal gear driving, reliable performance, large torque up to 15M, is the intermediate product between mini and industrial-grade valve, the valve sealed with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.
- Electrical and mechanical double limit, accurate positioning, 高い一貫性.
- The connection of actuator and valve belong to IS06211standard, flange type F03,F05 convenience for user choose valve body, And supply Brass, stainless steel ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.
- Position indicator and manual override function (suitable for sudden power failure or accident emergency switch).
技術的なパラメーター
| Valve size | DN8-DN50(2-方法) DN15-DN32(3-方法) 24VDCボールバルブ | Control wires | 2 3 5 6 wires | ||||||
| Actuator | All-metal gear transmission | Special Function | with manual override function(DN15-32) | ||||||
| Wiring diagram | CR01 CR02 CR03 CR04 CR05 with feedback signal:CR01S CR02S CR03S CR04S 24VDCボールバルブ | ||||||||
| Open/close time | Life time | Output
トルク |
Protection
Class |
Medium
temp |
バルブ
Material |
Medium
Pressure |
Motor
電圧 |
Motor
Power |
Working
Current |
| ≤12% | >50000 回 | 10nm | IP65 | ≤100℃ | Stainless steel
真鍮 UPVC |
≤1.6MPa | 5v | Max18W | <500Ma |
| 12v | Max22W | <300Ma | |||||||
| 24v | Max22W | <100Ma | |||||||
We have a complete scientific research, production, management system, especially in the field of microelectronics, system management, mechanical and electrical integration has advanced professional testing means, to provide a favorable guarantee for the quality of products. With a number of national invention patents and the use of new patents, enjoy independent intellectual property rights, some projects included in the national key new product plan and the national torch plan, greatly ahead of the technical level of the same industry.
