Introduce for 12v motorised valve
Tianjin Tianfei High-Tech Valve Co., Ltd.is a high-tech enterprise specializing in the production of electric ball valves and electric butterfly valves, and is the founding unit of Tianjin electric valve industry.
The independent research and development, production of industrial grade electric valve,micro electric valve, HVAC valve and other four categories, more than ten series, covering hundreds of products.
製品の特徴
1.POMとメタルギア, stable and reliable performance
2.Manual override function can use when power shut off

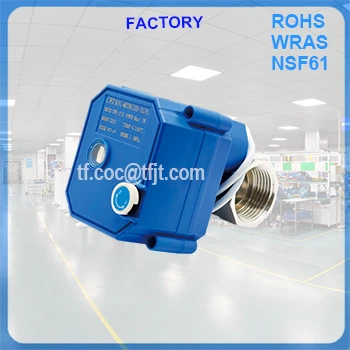

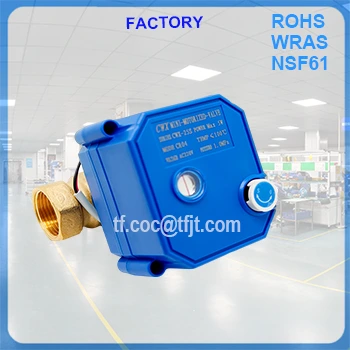

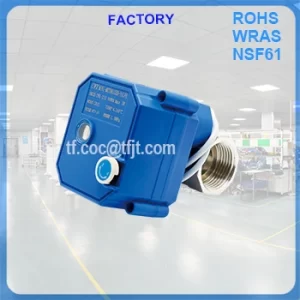

3.Compact appearance, with position indicator to show open/close of the valve
4.Straightway ball valve with large flow, 入口と出口の両方, protection class IP65

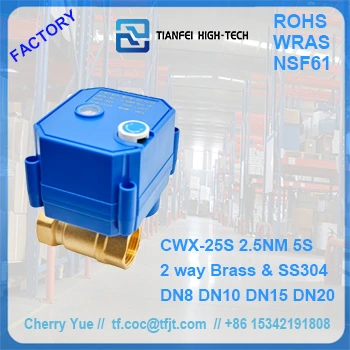

| モデル | CWX-25S 手動操作付き & position indicator 12v motorised valve |
| トルク | 2.5nm |
| 開いて/閉じます tする | 5s |
| バルブ size | DN8、DN10, DN15, DN20、DN25
1/4” 3/8” 1/2” 3/4” 1”
3方法: DN15 1/2” T型 DN20 3/4” T型 |
| バルブ材料 | 真鍮
SS304 |
| シール | シリカジェル /PTFE |
| スレッド標準 | BSP (ヨーロッパ標準)
npt (アメリカ標準) |
| 電圧 | DC3.6-6V, DC12V ,AC/DC9-24V, AC220V, AC85-265V |
| 配線図 | CR01 CR02 CR03 CR04 CR05 |
| 動作電流 | Max100mA (CR04 Max150mA) |
| 中温 | マックス 90 学位摂氏 |
| 作業圧力 | Max1.0mpa |
| 保護クラス | IP65 12v motorised valve |
| 認証 | ce,ISO9001、ROHS,汚い, NSF61 |
Manual operation and notes
1.Be sure the valve is power off supply before manual function.
2.Pulling up the hand wheel, turn the hand wheel arriving slightly(pay attention to the position indicator to avoid valve damage)
3.The electric function can only be normal worked after pressing down the hand wheel when no need of manual function.
応用
1.IC card water meter, heat energy meter
2.HVAC and fire works
3.Water saving of high-school, auto-control system, 産業用ミニオート機器
4.Water saving instrument, 飲料水設備, water heater, 太陽熱温水器, washing machine, industrial humidifier
