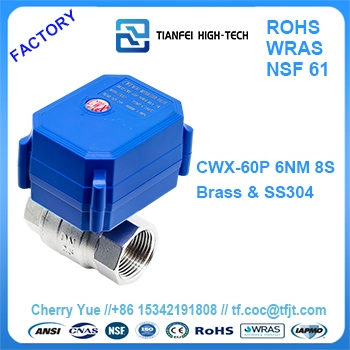

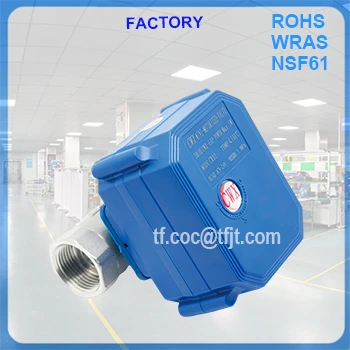

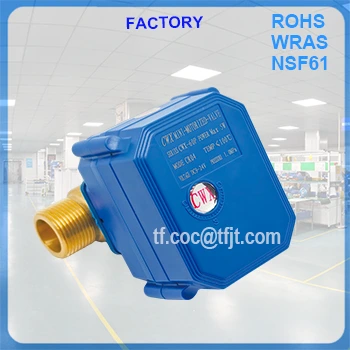

について紹介します 12 ボルト電動バルブ
| モデル | CWX-60P 12 ボルト電動バルブ |
| トルク | 6nm |
| 開いて/閉じます tする | 8s |
| バルブ size | DN8、DN10, DN15, DN20、DN25
1/4” 3/8” 1/2” 3/4” 1”
3方法: DN15 1/2” T型 DN20 3/4” T型 |
| バルブ材料 | 真鍮
SS304 |
| シール | シリカジェル /PTFE |
| スレッド標準 | BSP (ヨーロッパ標準)
npt (アメリカ標準) |
| 電圧 | DC3.6-6V, DC12V ,AC/DC9-24V, AC220V, AC85-265V |
| 配線図 | CR01 CR02 CR03 CR04 CR05 |
| 動作電流 | Max100mA (CR04 Max150mA) |
| 中温 | マックス 90 学位摂氏 |
| 作業圧力 | Max1.0mpa |
| 保護クラス | IP65 12 ボルト電動バルブ |
| 認証 | ce,ISO9001、ROHS,汚い, NSF61 |
Tianjin Tianfei High-Tech Valve Co., Ltd.is a high-tech enterprise specializing in the production of electric ball valves and electric butterfly valves, and is the founding unit of Tianjin electric valve industry.
With a number of national invention patents and the use of new patents, enjoy independent intellectual property rights, some projects included in the national key new product plan and the national torch plan, greatly ahead of the technical level of the same industry.
製品の特徴
1.Beautiful appearance, small size, multi angle assembly, easy to install and use
2.All metal gear transmission mechanism, large output torque, up to 6NM, 長寿命, reliable performance
3.Electrical limit, 正確な位置, 高い一貫性
4.フロートボール構造, 漏れなし, large flow for 2-way valve.
5.Protection class up to IP65, good substritution for solenoid valve or the environment which solenoid valve can not work, can be used in a relatively humid environment
