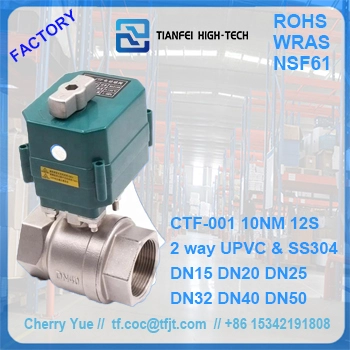

Perkenalkan untuk 1 katup bola bermotor inci
| Model | CTF-001 1 katup bola bermotor inci |
| Torsi | 10Nm |
| Buka/Tutup TMengerjakan | 12S |
| Katup SIze | DN15, DN20, DN25, DN32, DN40, DN50
1/2”3/4” 1 ”1.25” 1.5 ”2”
3jalan: DN15 1/2 "DN20 3/4" DN25 1 " |
| Bahan katup | SS304
UPVC |
| Segel | Silika Gel /Ptfe |
| Standar Thread | BSP (Standar Eropa)
NPT (Standar Amerika) |
| Voltase | DC3.6-6V, DC12V ,AC/DC9-24V, AC220V, AC85-265V |
| Diagram kabel | CR01 CR02 CR03 CR04 CR05 |
| Bekerja saat ini | MAX500MA |
| Suhu sedang | Max 90 Gelar Celcius |
| Tekanan kerja | MAX1.6MPA |
| Kelas Perlindungan | IP65 |
| Sertifikasi | Ce,ISO9001, ROHS,Kotor, NSF61 |
Tianjin Tianfei High-Tech Valve Co., Ltd.is a high-tech enterprise specializing in the production of electric ball valves and electric butterfly valves, and is the founding unit of Tianjin electric valve industry.
With a number of national invention patents and the use of new patents, enjoy independent intellectual property rights, some projects included in the national key new product plan and the national torch plan, greatly ahead of the technical level of the same industry.
The independent research and development, production of industrial grade electric valve, pneumatic valve,
Fitur Produk
- Simple shape, ukuran kecil, all-metal gear driving, reliable performance, large torque up to 15M, is the intermediate product between mini and industrial-grade valve, the valve sealed with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.
- Electrical and mechanical double limit, accurate positioning, konsistensi tinggi.
- The connection of actuator and valve belong to IS06211standard, flange type F03,F05 convenience for user choose valve body, And supply Brass, stainless steel ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.
- Position indicator and manual override function (suitable for sudden power failure or accident emergency switch).
