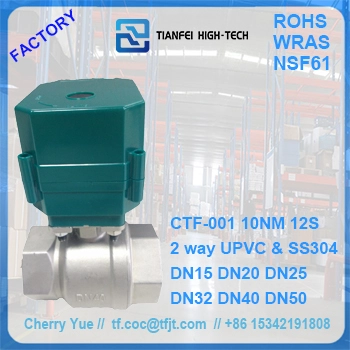

Perkenalkan untuk 1 katup bola listrik inci
CTF-001
Fitur Produk
- Simple shape, ukuran kecil, all-metal gear driving, reliable performance, large torque up to 15M, is the intermediate product between mini and industrial-grade valve, the valve sealed with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.
- Electrical and mechanical double limit, accurate positioning, konsistensi tinggi.
- The connection of actuator and valve belong to IS06211standard, flange type F03,F05 convenience for user choose valve body, And supply Brass, stainless steel ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.1 inch electric ball valve
- Position indicator and manual override function (suitable for sudden power failure or accident emergency switch).
Parameter teknis
| Valve size | DN8-DN50(2-jalan) DN15-DN32(3-jalan) | Control wires | 2 3 5 6 wires | ||||||
| Actuator | All-metal gear transmission | Special Function | with manual override function(DN15-32) | ||||||
| Wiring diagram | CR01 CR02 CR03 CR04 CR05 with feedback signal:CR01S CR02S CR03S CR04S | ||||||||
| Waktu buka/tutup | Life time | Output
Torsi |
Protection
Class |
Medium
temp |
Katup
Material |
Medium
Pressure |
Motor
Voltase |
Motor
Power |
Working
Current |
| ≤12% | >50000 kali | 10Nm | IP65 | ≤100℃ | Stainless steel
Kuningan UPVC |
≤1.6MPa | 5v | Max18W | <500mA |
| 12v | Max22W | <300mA | |||||||
| 24v | Max22W | <100mA | |||||||
The company has a professional R & D team, obtained a number of product patent certificates, and won the recognition of Tianjin government departments for many times,
The independent research and development, production of industrial grade electric valve, pneumatic valve, micro electric valve, HVAC valve and other four categories, more than ten series, covering hundreds of products.
We have a complete scientific research, production and management system, especially in the field of microelectronics, system management, mechanical and electrical integration has advanced professional testing means, which provides a favorable guarantee for the quality of products
We have a complete range of valve testing equipment, a large number of young R & D, production
